DIODON
AMPHIBIOUS DRONE
DIODON Drone Technology brings world’ first inflatable, amphibious family of drones. With Ingress Protection rating of 45, the DIODON drone can operate in adverse weather conditions, heavy rain or snowfall and is capable to launch and land on water, as demonstrated at SOFINS, Special Operation Forces Innovations Network event in March 2017.
POSSIBLE APPLICATIONS
DIODON drones are perfectly suited for applications in search and rescue missions, coastal guard surveillance, military reconnaissance missions in rough environments. Foldable to a small backpack, can be rapidly deployed by inflating arms with an aid of electric compressor or even hand pump.

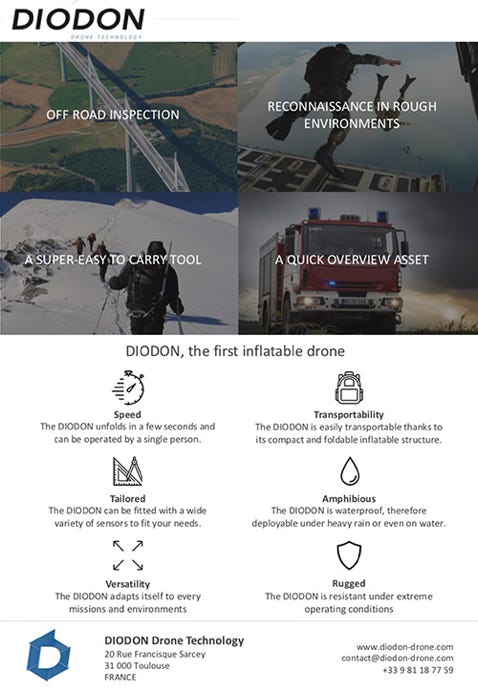

KEY FEATURES
RAPID DEPLOYMENT
Each DIODON unfolds in a few seconds and can be operated by a single person.
EASY TRANSPORTABILITY
Each DIODON is easily transportable thanks to compact, foldable inflatable structure.
VERSATILITY

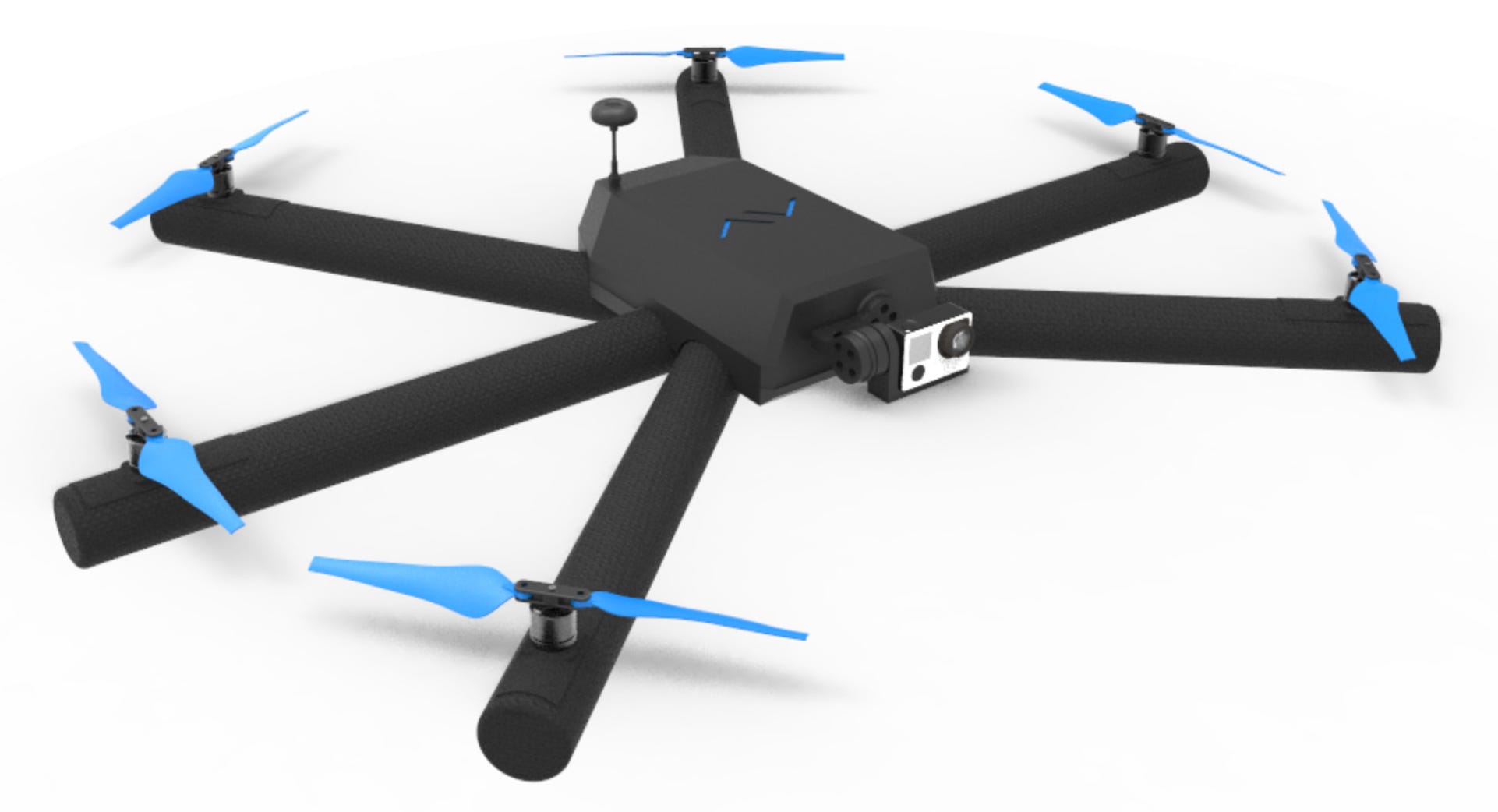

Each DIODON can be fitted with a wide range of sensors to suit specific needs.
AMPHIBIOUS
Each DIODON is completely waterproof, therefore deployable under heavy rain or even directly from water surface.
AVAILABLE VARIANTS
Recommended payload (g)
Payload example
Folded size (mm)
Unfolded size (mm)
Maximum endurance (min)
Unfolding time (s)
Operational range (km)
Ingress Protection rating
SP20
200
Single sensor (thermal,
day or night)
200 x 200 x 100
600 x 600 x 100
20
45
2
45
MP40
400
Stabilised Gimbal with single-sensor
300 x 300 x 150
800 x 800 x 150
30
60
3
45
HP150
1500
Stabilised Gimbal with multi-sensors
400 x 400 x 200
1500 x 1500 x 200
35
120
3
45
PURCHASE
PRODUCT PURCHASE

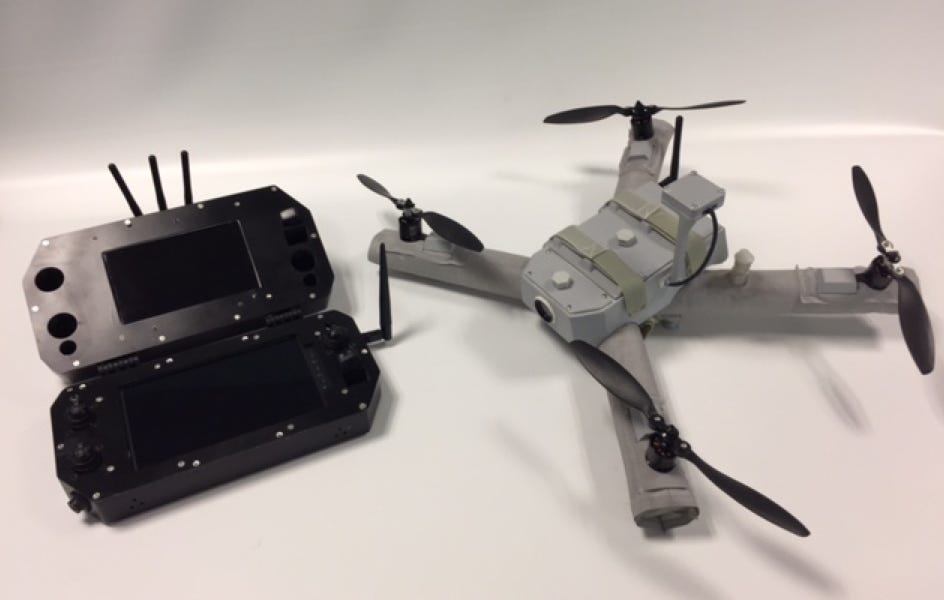

Southern Cross Drones takes pre-orders for complete DIODON solution kit, including inflatable drone, remote controller, electric pump, spare parts, training and after sales support. We are expecting general availability of DIODON drone in 2nd half of 2017. Send us a message to request quote and learn more about DIODON use cases.
