ELIOS by FLYABILITY

INSPECT & EXPLORE

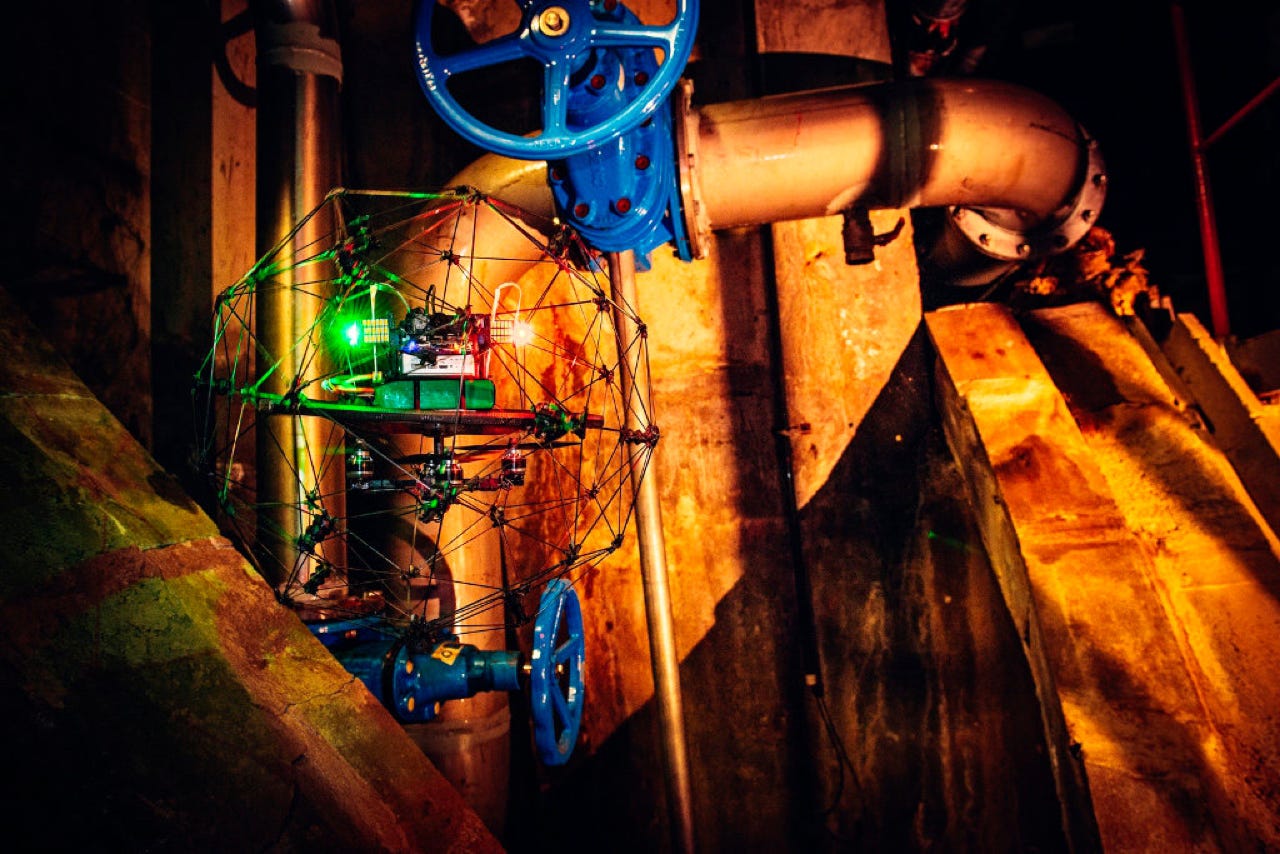

Discover the first collision-tolerant flying robot, designed for industrial inspection professionals. Designed and manufactured by FLYABILITY, allowing for the first time access to complex, cluttered or indoor places, Elios is unleashing the potential of UAVs in a number of applications where their use was previously too dangerous or simply impossible.

Video

Video:  Elios, the collision-tolerant drone for industrial inspection

DESIGN

INTEGRATED PAYLOAD

Simultaneous full HD and thermal imagery recording, and adjustable tilt angle.

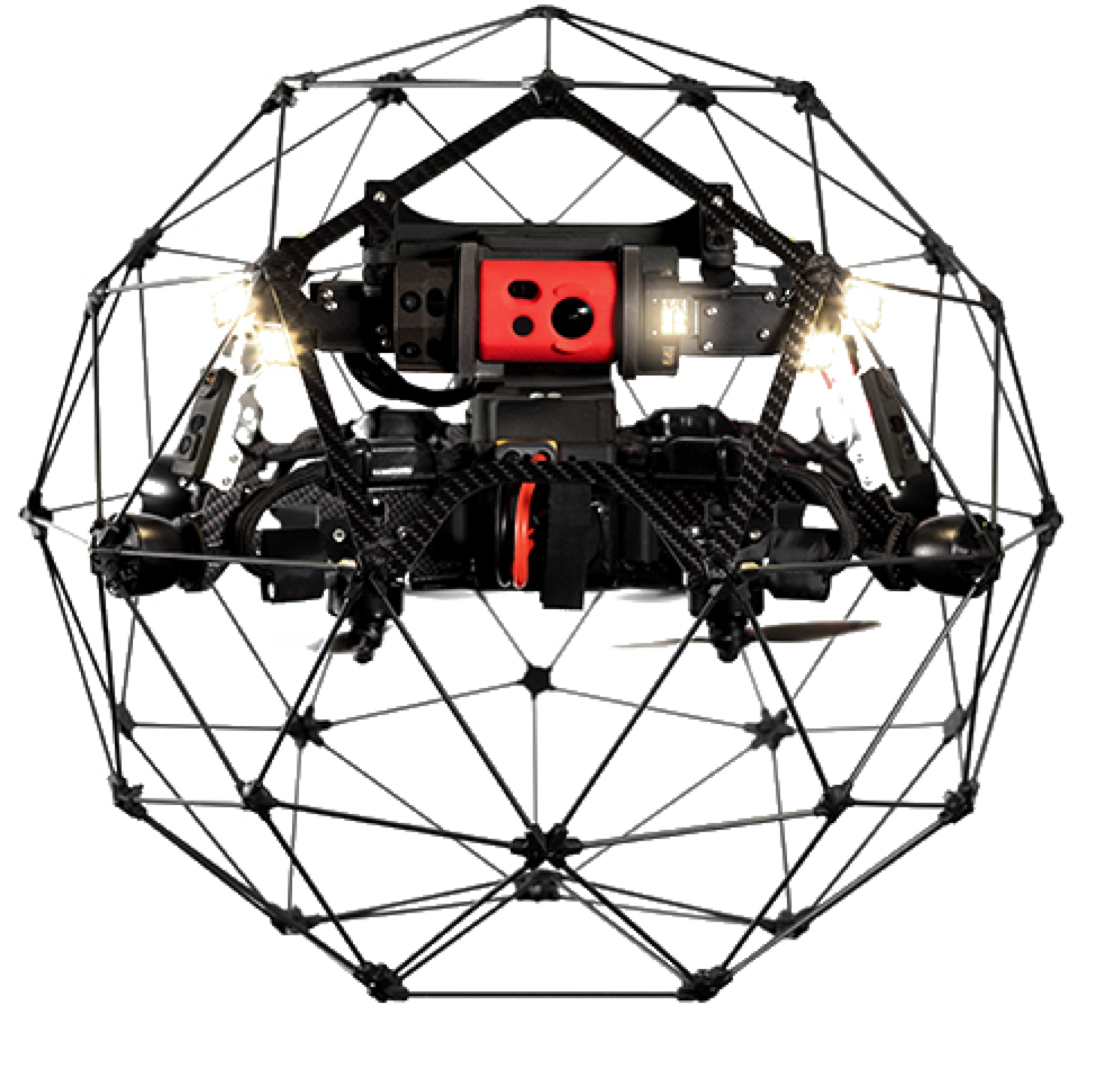

PROTECTIVE FRAME

Carbon fibre structure, collision-tolerant up to 15km/h. Modular design for easy maintenance.



LIVE 2.4 GHz VIDEO FEEDBACK

Robust digital video downlink for beyond line of sight operation, even in metallic environments.



ON BOARD LIGHTING

Powerful LEDs for navigation and inspection in dark places.



CONTINUOUS OPERATION

Batteries can be changed in seconds.



POST-MISSION REVIEW

Carbon fibre structure, collision-tolerant up to 15km/h. Modular design for easy maintenance. After finishing the inspection flight, Elios’ software presents mission data for future reference.

BENEFITS

LOWER DOWNTIME

Decrease downtime and inspection costs, avoid confined space entry and increase worker safety by remotely accessing boilers, tanks, pressure vessels, tunnels and other complex environments inside your plant.



EASY TO PILOT

No piloting experience needed. Simply unpack, insert the battery and fly without risk of collision, damage or injury. The drone is capable of taking off and landing in any variety of environments.



HIGH RESOLUTION IMAGERY

Elios is capable of delivering images up to 0.2 mm/px, even in complete darkness. Along with its LED lighting and thermal imagery, it inspects and explores the unreachable



SAFE FOR HUMANS

Thanks to its protective cage, Elios is safe to fly close and even in contact with humans and the surrounding environment. It can thus be used when the plant is still in operation without any risk of crash or injury.

TECH SPECS

FLIGHT MODES

TYPES

Manual thrust, altitude hold, pro mode (high speed)



AVAILABILITY

Switch between modes at any time



FAIL SAFES

Auto-landing on low-battery or signal lost



ON-BOARD ELECTRONICS

AVIONIC BOARD

Autopilot, thermal video and system management



POWER BOARD

Motors control



FLIGHT SYSTEM

TYPE

Quadcopter configuration



DIMENSIONS

Fits in < 400mm sphere



MOTORS

4 electric brushless motors



PROPELLERS

4 propellers, 5 inches



TAKE-OFF WEIGHT

700 g including battery, payload & protection



FLIGHT TIME

Up to 10 min



MAXIMUM CLIMB RATE

1.5 m/s (in normal mode) 2.5 m/s (in pro mode)



MAXIMUM AIR SPEED

3 m/s (in normal mode) 7 m/s (in pro mode)



WIND RESISTANCE

Max. 5m/s (in pro mode)



SENSORS

IMU, magnetometer, barometer



MATERIALS

Carbon fibre composites, magnesium alloy, aeronautical grade aluminium, high-quality thermoplastics



OPERATING TEMPERATURE

0 ºC to 50 °C



WIRELESS COMMUNICATION

TYPE

Digital, bidirectional, long range, video and data downlink to remote controller (RC), command and data uplink to UAV



FREQUENCY

2.4 GHz



RANGE

Up to 500m in direct line of sight



REMOTE CONTROLLER

TYPE

Ergonomic joysticks and payload controls, integrated video outputs



WEIGHT

810 g



OPERATING TEMPERATURE

0 °C to 40 °C



OUTPUT PORTS

HDMI, SDI, USB



BATTERY

6000 mAh, 2S



CONTROLS

Payload settings and aircraft control



OPTIONS

Optional remote controller (camera operator) with video stream reception on a secondary screen, and dual control of camera settings.



SYSTEM POWER

TYPE

Lithium polymer battery, 3 cells, 2800 mAh, 33.08 Wh



CHARGING TIME

1 h



BATTERY CHANGE TIME

< 1 min



INTEGRATED PAYLOAD

PAYLOAD HEAD

Damped from vibrations



UPWARDS TILT

+80 degrees



DOWNWARDS TILT

-60 degrees

MAIN CAMERA

VIDEO

FHD (1920 x 1080) at 30 fps, good low light performance, recorded on board and streamed to pilot and camera operator



HORIZONTAL FIELD OF VIEW

130 degrees



VERTICAL FIELD OF VIEW

75 degrees



TOTAL VERTICAL FIELD OF VIEW

215 degrees (considering payload up/down rotation)



CONTROL MODES

Auto with EV correction, full manual mode



THERMAL CAMERA

TYPE

Uncooled FLIR camera core



VIDEO

160 x 120 pixels at 9 fps, recorded on board



HORIZONTAL FIELD OF VIEW

56 degrees



VERTICAL FIELD OF VIEW

42 degrees



LIGHTING SYSTEM

TYPE

5 arrays of high-efficiency LEDs for even lighting in front, top, and bottom of the robot



CONTROL

From remote controller, adaptive light beam controlled by camera pitch



POWER

11.4 W nominal power for front lighting, 28 W total installed max.



OPERATIONAL SAFETY & CRASHWORTHINESS

NAVIGATION LIGHTS

Green and red lights



PROTECTION CAGE

Carbon fibre cage with soft coating, modular subcomponents for maintenance ease, thermoplastic elastomer suspensions, size of openings: triangles of about 11 cm sides allowing for hand to access inside for swapping batteries



COLLISION TOLERANCE

Uniform all around the drone, up to 3 m/s on sharp objects, up to 4 m/s on flat objects



DECOUPLING

3-axes gimbal system, carbon fibre composite ring and transverse beam



ACCESSORIES

TRANSPORT CASE

IATA compliant transport case for checked-in luggage, dimensions (approximate): 60 cm x 50 cm x 50 cm



CHARGERS

3 A / 35 W lithium polymer battery balance charger, with charging status indicator, RC charger: 17.4 V, 57 W, tablet USB charger: 5 V



MOBILE APPLICATION USED DURING FLIGHT (ELIOS COCKPIT)

FEATURES

Real time video and UAV telemetry, status visualisation (remaining battery, payload settings, warnings, etc. ), control payload settings and various configurations.



OPERATING SYSTEM

Android, optimised for tablet provided with UAV system



POST FLIGHT VIDEO, THERMAL AND LOG ANALYSIS (FLYABILITY INSPECTOR)

FEATURES

Video and thermal video viewer (frame by frame), flight log analysis including point of interests recorded during flight, screenshots and flight data export.



OPERATING SYSTEM

Windows 7, 8 and 10 (64 bits only).



PURCHASE

PRODUCT PURCHASE

Southern Cross Drones are the official resellers for Flyability SA, offering complete Elios flying system, including drone, remote controller, spare parts and batteries, training and after sales support.   Send us a message to request quote and learn more about Elios drone use cases.    Email  sales@southerncrossdrones.com
