MicaSense RedEdge

High quality, multispectral imagery that soars above the rest

New technologies are revolutionising the use of remote sensing in agriculture.  The widespread availability of lowcost unmanned aircraft enables agricultural professionals to costeffectively gather crop health information.  Imagery can be collected at resolutions measured in just inches per pixel.  Data captured on a frequent basis enables growers and agronomists to map the health and vigor of crops today as well as observe changes in crop health over time.  MicaSense delivers technologies that enable this revolution.

Accurate information for your  yields starts with quality sensors. MicaSense offers professional multispectral cameras optimised for use in drones: RedEdge® by MicaSense and Sequoia by Parrot. Featuring narrowband  lters, calibrated outputs, and small size and weight, RedEdge and Sequoia coupled with MicaSense Atlas provide your complete multispectral remote sensing solution.

Through drone-based sensors and analytics, MicaSense provides a complete solution that empowers growers to more effectively manage their crops.

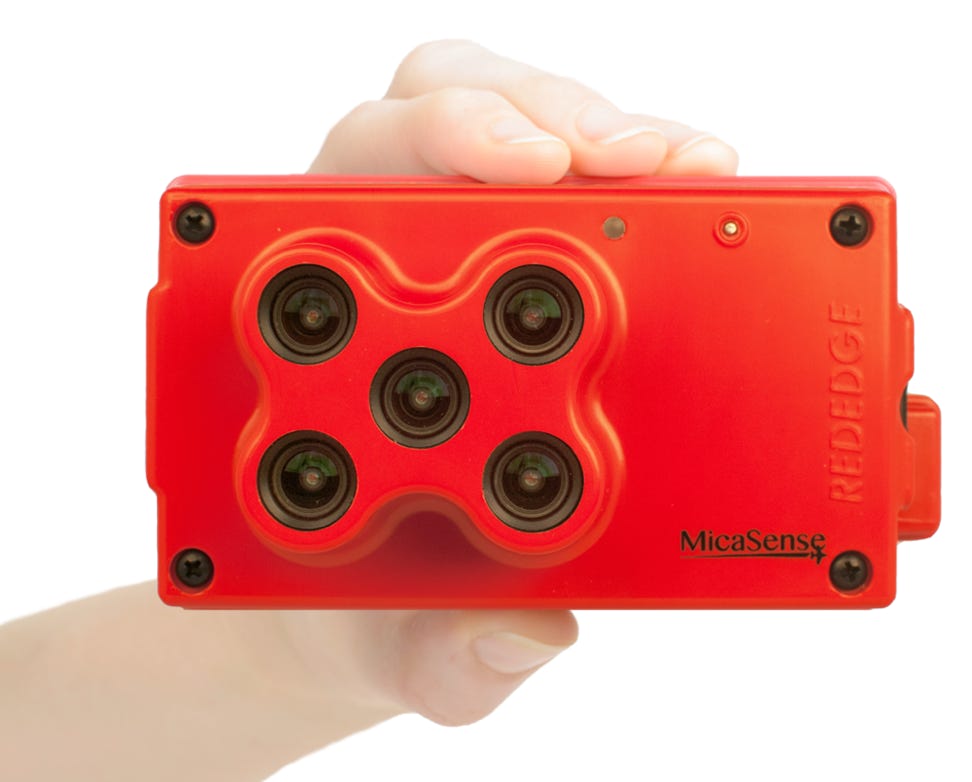

MicaSense RedEdge is the sensor that doesn’t compromise.  RedEdge is a rugged, built-to-last, professional multispectral sensor that captures specific wavebands needed for accurate plant health analysis. With various integration options, it’s also one of the most flexible solutions on the market. Additionally, optimized GSD, a downwelling light sensor, a low power requirement, and a global shutter for distortion-free images make this sensor the multispectral powerhouse.

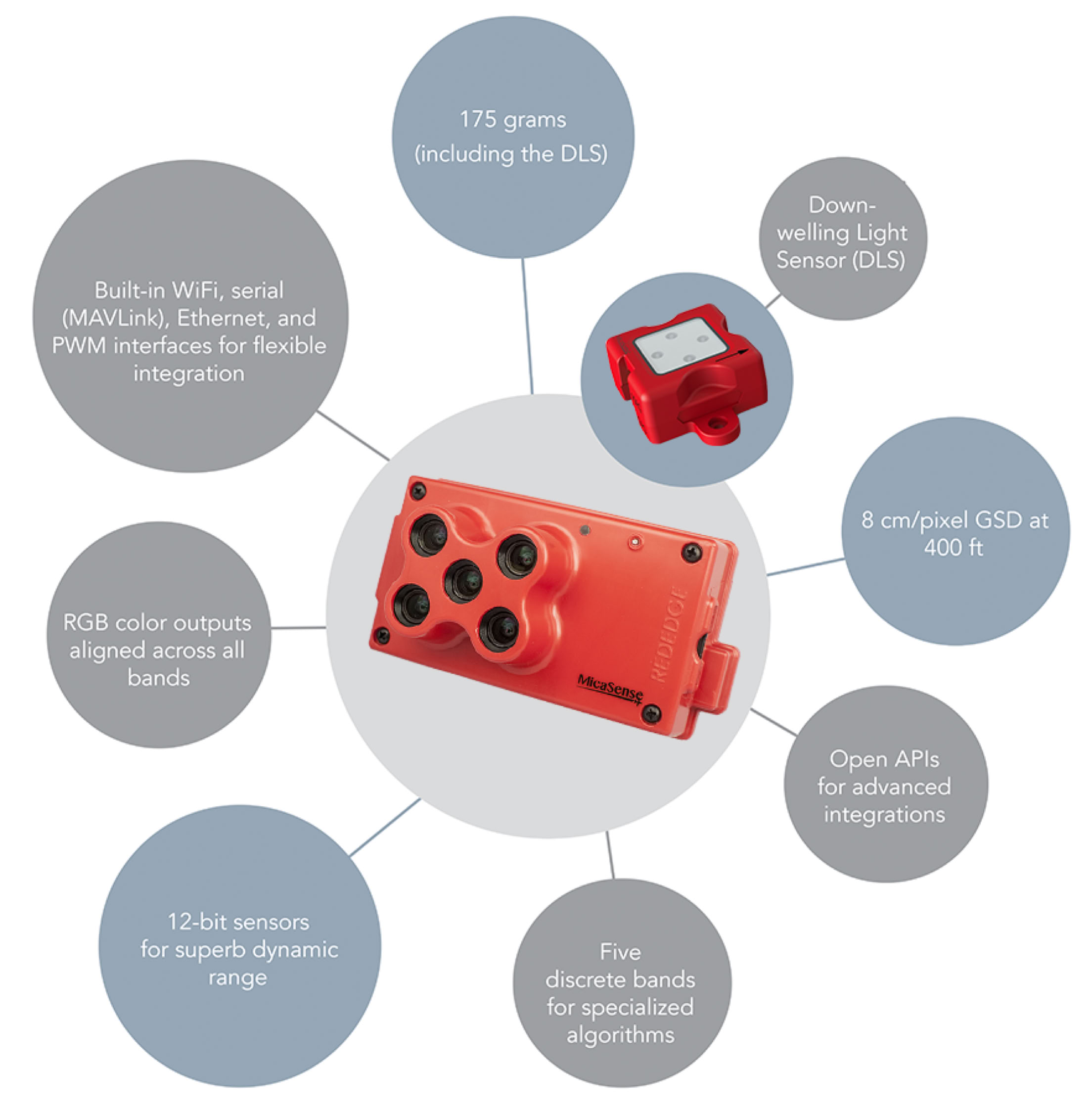

SPECIFICATION

Weight:



Dimensions:



External Power:



Spectral Bands:





RGB Color Output:



Ground Sample Distance (GSD):



Capture Rate:



Interfaces:



Field of View:



Custom Bands:



180 grams including DLS and cable:



12.1 cm x 6.6 cm x 4.6 cm



5.0 V DC, 4 W nominal (8 W peak)



Blue, green, red, red edge, near IR (global shutter, narrowband)



3.6 MP (global shutter, aligned with all bands)



8 cm per pixel (per band) at 120 m AGL



1 capture per second (all bands), 12-bit RAW



Serial, Ethernet, WiFi, External Trigger, GPS



47.2° HFOV



400nm - 900nm (QE of 10% at 900nm)

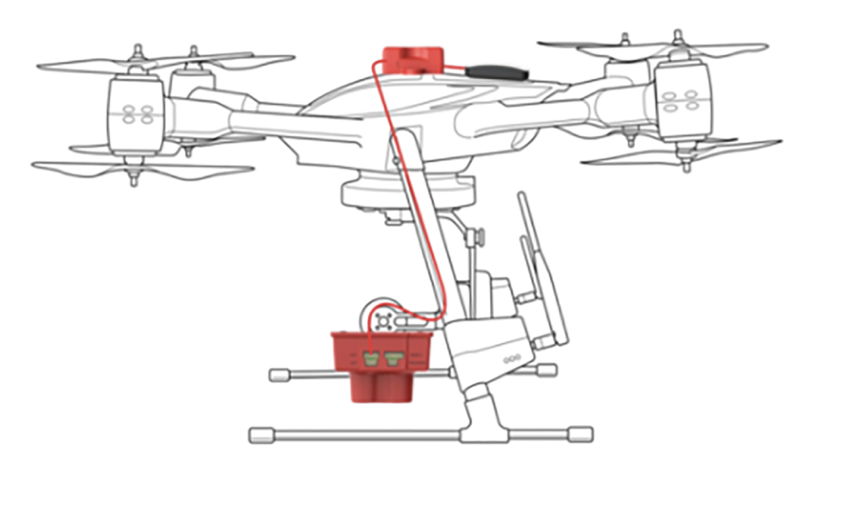

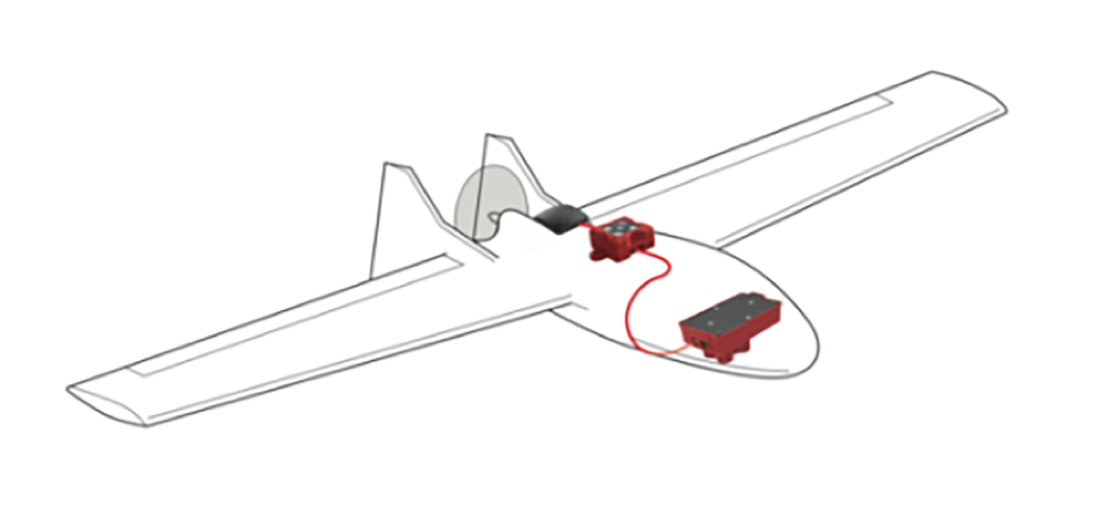

SEAMLESS INTEGRATION ACROSS ALL UAV PLATFORMS

RedEdge is action-ready, integrating seamlessly no matter the platform.  Versatile interfaces including built-in WiFi, Ethernet, serial (MAVLink), and PWM/GPIO triggers help turn a complex installation into a simple task.

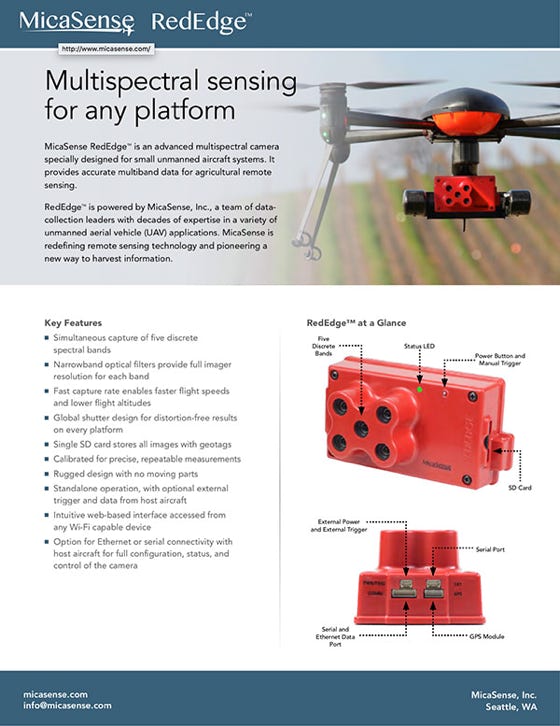

DOWNLOAD BROCHURES

PURCHASE

Southern Cross Drones are Resellers / Distributors  for MicaSense RedEdge and Atlas products in Australia, New Zealand and APAC regions.  For more information about MicaSense  products  and to purchase contact us by sending request to info@southerncrossdrones.com
